Repair
Repair Price: $ 644.00
Purchase
CSL Part Number: 80609

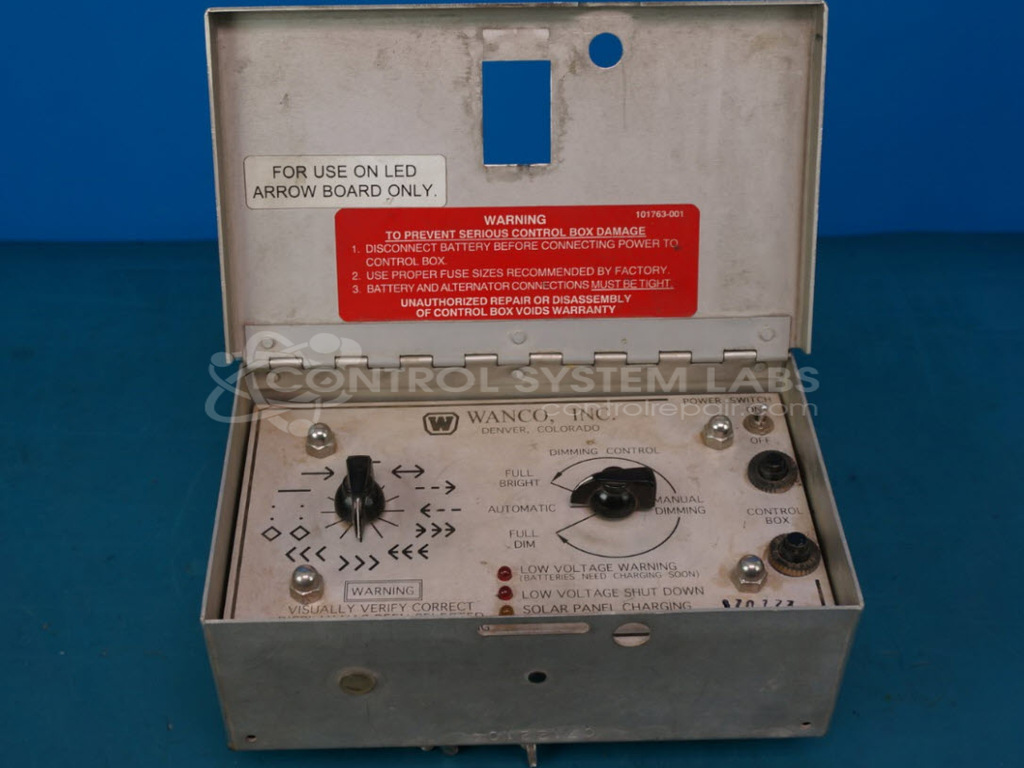

Product Overview: The Wanco Arrow Board Controller 12 Pattern LED is a solar-powered traffic control system that manages LED arrow boards used in highway work zones and construction sites. It provides 12 distinct flash patterns to direct traffic safely around hazards or lane closures. The controller interfaces with LED arrow panels through an 18-pin connector (some versions use 20 pins), handling power distribution and pattern sequencing. It features automatic brightness adjustment via photocell sensor, manual dimming controls, low-voltage shutdown protection, and integrated circuit breakers. The unit operates on battery power recharged by solar panels and includes status indicators for charging and low-voltage conditions. Common in road construction, utility work, and emergency traffic management applications.
Category: Arrow Signal Controls
Manufacturer: Wanco
Manufacturer Synonyms: WECO
Manufacturer Part Number: 12 Pattern LED
Series: Arrow Board Controller
Common Failures
This product may experience issues related to corrosion and defective components, particularly capacitors, MOSFETs, and FETs. Typical symptoms include the unit being inoperative, partial functionality, lights being dim or not working fully, and erroneous shutdown indications. Connection issues due to solder joint defects and problems with components like connectors, switches, and knobs have also been noted.
Repair Approach
Repairs may involve cleaning corrosion, replacing defective components such as capacitors and MOSFETs, resoldering connections, and applying conformal coatings to help prevent future damage. Preventative maintenance steps, such as replacing aging components and verifying connections, are also part of the repair process when applicable.
Testing & Quality
Once repairs are completed, units undergo testing, which may include burn-in tests with loads to simulate operating conditions. Our team works to verify that functionality is restored and components operate as expected. Quality control procedures are applied throughout the repair process.
Service and repair your broken Wanco part
We can repair your Wanco model 12 Pattern LED in our facility. Let our skilled technicians get your Wanco back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
