Repair
Repair Price: $ 1,720.00
Purchase
CSL Part Number: 79906

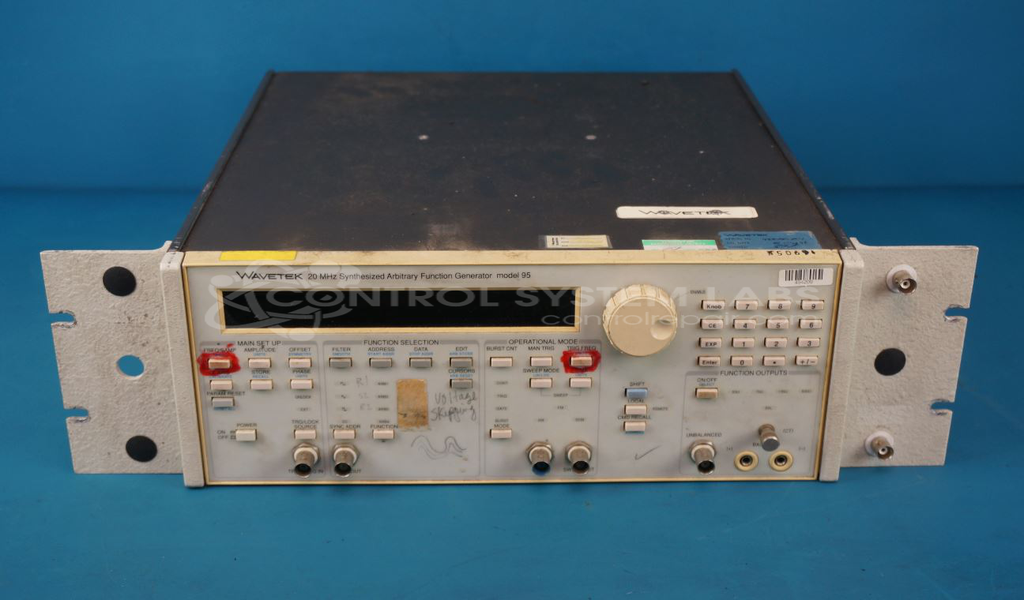

Product Overview: The Wavetek 95 is a synthesized arbitrary and function generator with a frequency range of 20 Hz to 20 MHz. It provides precise waveform generation for electronic testing, calibration, and development applications across telecommunications, research labs, and manufacturing environments. This unit features internal memory for storing instrument configurations, maintained by an internal lithium battery. Its synthesized architecture ensures accurate, stable output signals for demanding test and measurement tasks in analog and digital circuit design.
Category: Test Equipment
Manufacturer: Wavetek
Manufacturer Part Number: 95
Common Failures
One common issue with this product involves the internal battery losing charge, which can affect the unit's ability to retain stored settings after a power cycle. Battery voltage may drop over time, potentially impacting data retention capabilities.
Repair Approach
The typical solution for battery-related issues is replacing the internal battery. Once a new battery is installed, diagnostic testing is performed to verify that the unit stores configurations correctly after being powered off. Additional maintenance may include cleaning internal components such as daughter cards, the front panel, and the push-button membrane.
Testing & Quality
After battery replacement and reassembly, the unit undergoes testing to verify proper functionality. These tests may include frequency generation, configuration storing and loading, and extended run tests. The unit is powered off and restarted to confirm that configurations are retained. Testing is performed to verify that the unit operates as expected following repair.
Service and repair your broken Wavetek part
We can repair your Wavetek model 95 in our facility. Let our skilled technicians get your Wavetek back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
