CSL Part Number: 9434

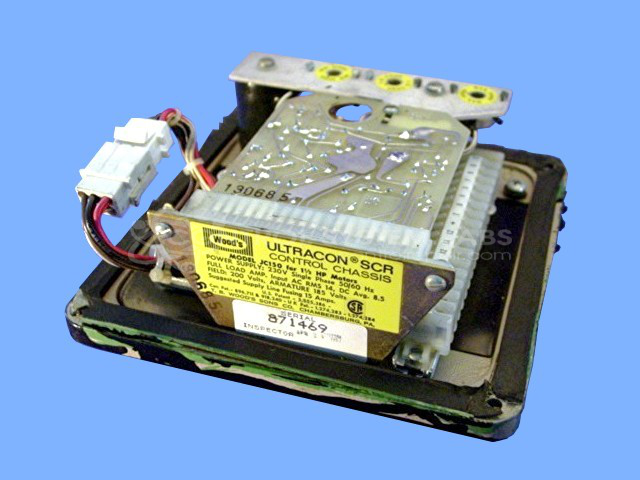

Product Overview: The Woods Ultracon JC150 is a 1.5 horsepower SCR-based DC motor controller designed for variable speed control of permanent magnet and shunt-wound DC motors in industrial applications. It uses silicon-controlled rectifier technology to provide smooth, adjustable motor speed by controlling armature voltage. The unit operates at 240VAC input and delivers up to 180VDC output at 120 Hz for precise torque and speed regulation. Common applications include conveyors, packaging equipment, and material handling systems requiring reliable DC motor speed control.
Category: DC Motor Controls
Manufacturer: Woods
Manufacturer Synonyms: FUJI, TB Woods, T.B.Woods, Wood's
Manufacturer Part Number: JC150
Series: ULTRACON SCR Control
Common Failures
Common issues identified in this product include shorted power modules and diodes, leaking capacitors, and resistors falling out of their specified tolerance range. These defects often result in reduced performance and may require component replacement.
Repair Approach
The repair process generally involves replacing faulty components such as power modules, diodes, capacitors, and resistors. Additionally, any damaged traces on the printed circuit board are repaired to ensure reliable connections.
Testing & Quality
After repairs are completed, the product is tested to verify proper operation. Testing includes running the unit with a motor and monitoring the output using a scope and digital multimeter. Adjustments are made as necessary to bring the output within required specifications, such as achieving 120 Hz and 180VDC under test conditions.
Service and repair your broken Woods part
We can repair your Woods model JC150 in our facility. Let our skilled technicians get your Woods back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
