Woods JC300 3HP Ultracon DC Drive

Repair

Repair Price: $ 644.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/34628/image_1920?unique=e45bd6d
  • Condition

Purchase Price: $ 0.00 $ 0.00 644.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 15291

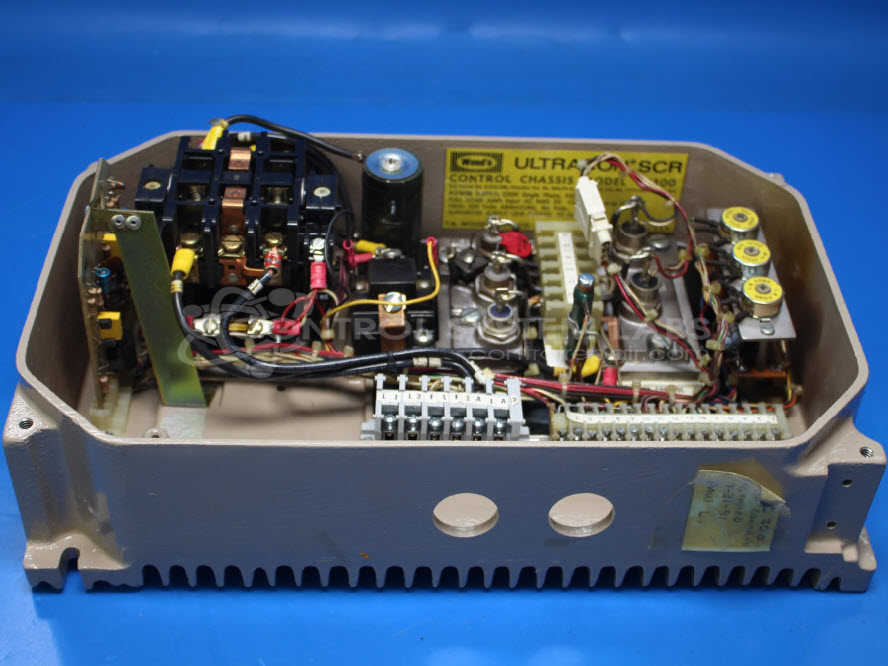

Product Overview: A 3HP SCR-based DC motor control used to regulate the speed and torque of DC motors in industrial machinery. It rectifies AC input to variable DC output for controlling motor operation, suited for conveyors, pumps, and similar process equipment.
Category: DC Motor Controls
Manufacturer: Woods
Manufacturer Synonyms: FUJI, TB Woods, T.B.Woods, Wood's
Manufacturer Part Number: JC300
Series: ULTRACON SCR Control

Common Failures

This unit type may experience issues where activating the motor causes the relay to trigger and fuses to blow. During evaluation, technicians often find a short in the bridge near the power diodes, along with capacitors that are out of specification.

Repair Approach

The typical repair process involves replacing the bridge and affected capacitors. After component replacement, the unit undergoes testing to verify that the original failures have been addressed.

Testing & Quality

Upon completion of repairs, units are tested, including a drive test, to verify proper functionality. A burn-in process is conducted for two hours to help ensure the reliability of the repair work.

Service and repair your broken Woods part


We can repair your Woods model JC300 in our facility. Let our skilled technicians get your Woods back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
