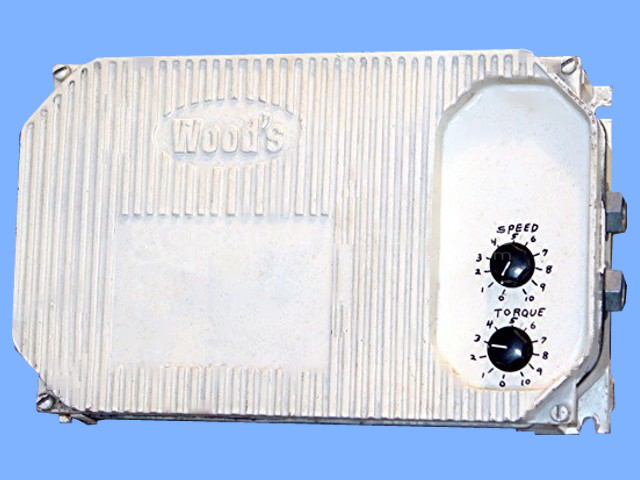

Woods JC500 5HP Ultracon DC Drive

Repair

Repair Price: $ 1,012.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/34629/image_1920?unique=dafe981
  • Condition

Purchase Price: $ 0.00 $ 0.00 1012.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 15292
Product Overview: A 5 HP SCR-based DC motor control that regulates the speed and torque of DC motors by phase-controlled rectification of AC line voltage. Used in industrial machinery requiring adjustable DC drive control, including conveyors, pumps, and processing equipment.
Category: DC Motor Controls
Manufacturer: Woods
Manufacturer Synonyms: FUJI, TB Woods, T.B.Woods, Wood's
Manufacturer Part Number: JC500
Series: ULTRACON SCR Control

Common Failures

One issue that may be found with this product is a control problem caused by a shorted AC line. This type of defect can lead to operational disruptions.

Repair Approach

When a control problem is identified during evaluation, our technicians focus on replacing damaged components that are necessary for the unit's functionality. Repair procedures involve the replacement of affected components and a thorough check of the unit's operation following repair.

Testing & Quality

Following repair, the unit undergoes testing to verify proper operation. The unit is checked to confirm that repairs have been completed according to CSL standards.

Service and repair your broken Woods part


We can repair your Woods model JC500 in our facility. Let our skilled technicians get your Woods back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
