Repair
Repair Price: $ 844.00
Purchase
CSL Part Number: 15299

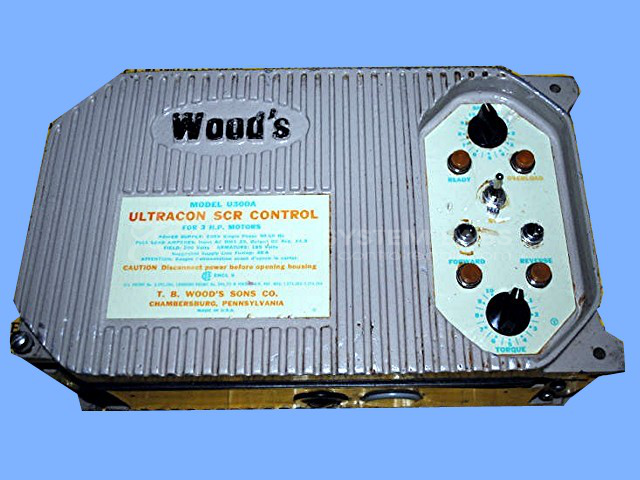

Product Overview: The Woods U300A is a 3HP SCR-based DC motor drive from the Ultracon series. It provides speed and torque control for DC motors in industrial applications such as paper machinery and lathes. The drive uses analog control circuitry with SCR firing for armature voltage regulation. It includes terminal connections for motor armature, field, and control inputs. The U300A is designed for single-motor applications requiring variable speed operation with directional control capabilities.
Category: DC Motor Controls
Manufacturer: Woods
Manufacturer Synonyms: FUJI, TB Woods, T.B.Woods, Wood's
Manufacturer Part Number: U300A
Series: ULTRACON SCR Control
Common Failures
Common issues include communication failures with the motor, speed control malfunctions in motor drive sections, failed capacitors on driver boards, and relay failures.
Repair Approach
Repairs typically involve replacing defective components such as power resistors and electrolytic capacitors. In some cases, damaged wiring is repaired. We review configuration changes that may affect operation and address them as needed during the repair process.
Testing & Quality
Units are evaluated to confirm reported issues. Following repair, items are tested to verify that operational standards are met before return to the customer.
Service and repair your broken Woods part
We can repair your Woods model U300A in our facility. Let our skilled technicians get your Woods back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
