CSL Part Number: 44603

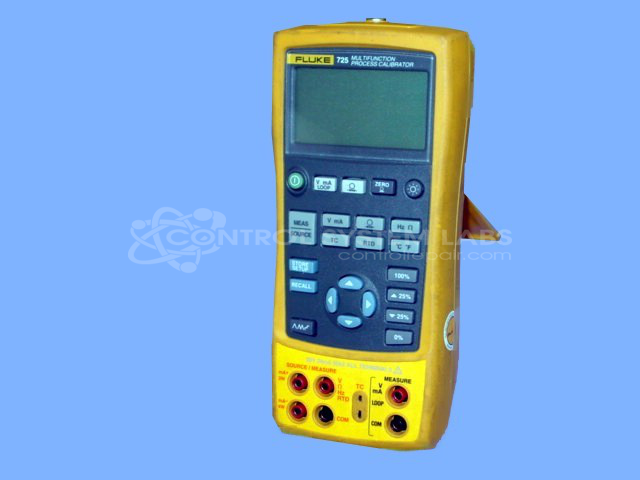

Product Overview: The Fluke 725 is a handheld multifunction process calibrator designed to source, simulate, and measure electrical signals used in industrial process control. It can calibrate and troubleshoot transmitters, valves, and other field devices by generating and reading voltage, current (mA), resistance, frequency, and temperature signals. Common applications include calibrating 4-20mA loops, RTDs, thermocouples, and pressure transmitters in process industries. The unit operates on four AA batteries and features a dual-display interface for simultaneous viewing of output and measurement values.
Category: Test Equipment
Manufacturer: Fluke
Manufacturer Part Number: 725
Repairs and pricing vary. Send in along with complaint for a quote.
Common Failures
Some units experience issues with powering on, particularly under cold conditions. Alkaline batteries may not provide sufficient voltage in sub-zero temperatures, which can lead to power failures. Intermittent connections, particularly in battery contacts, have also been observed as a cause of power issues.
Repair Approach
Repairs typically involve enhancing battery connections by reflowing and replacing battery contacts. Bullet connectors may be introduced to address intermittent power issues, allowing for better stabilization and future disassembly.
Testing & Quality
Units undergo testing, including diagnostic tests in varying temperatures to verify consistent power-up performance. Units are tested with appropriate batteries and connections to confirm functionality without significant voltage drops. Testing has shown that units can function correctly when proper batteries are used according to the manual's specifications.
Repair your broken Fluke part
We can repair your Fluke model 725 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
