Repair
Repair Price: $ 580.00
Purchase
CSL Part Number: 48400

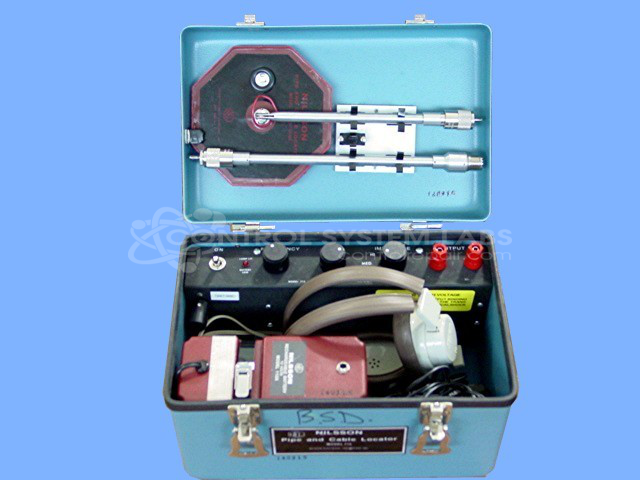

Product Overview: The Nilsson Model 715 is a pipe and cable locator system used to trace underground utilities, buried cables, and metallic pipes. It consists of a transmitter that generates an adjustable frequency signal (200Hz to 1kHz) with selectable impedance settings, a handheld receiver wand for detecting the transmitted signal, and headphones for audio feedback. The system operates on 12V DC power for the transmitter and 9V batteries for the receiver, commonly used in utility location, construction site surveys, and maintenance operations.
Category: Test Equipment
Manufacturer: Nilsson Electrical
Manufacturer Part Number: 715
Series: Pipe and Cable Locater
Price is for repair of the item supplied. Please indicate if you would like a quote for missing accessories (headphones, battery, etc.)
Common Failures
The primary issues identified in these units included defective or missing components. Common symptoms included no signal to receiver, missing batteries, headphones, and output leads, and malfunctioning capacitors. Additionally, broken latches on cases and frayed cables were frequently reported. One unit presented with damaged headphone cords and a faulty on/off switch mechanism due to a bent metal clip.
Repair Approach
Repairs included replacing defective capacitors, batteries, and headphone components. Cleaning was applied to all parts, including the transmitter, receiver, and general casing. In some cases, extensions and connections required soldering or replacement to restore functionality. Repairs also involved adjusting misplaced components to their correct positions.
Testing & Quality
Post-repair, units underwent testing to confirm functionality. Burn-in tests with specified loads were conducted to evaluate operability, and testing confirmed satisfactory performance upon completion. Frequency adjustments and output parameters were checked against standard procedures.
Service and repair your broken Nilsson Electrical part
We can repair your Nilsson Electrical model 715 in our facility. Let our skilled technicians get your Nilsson Electrical back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
